Abstract Factory Design Pattern in C#

In this article, you will learn about the Abstract Factory design pattern, its components, and a real-world example in C# to understand how it can be used in practical scenarios.

Abstract Factory Definition

The Abstract Factory design pattern is a creational pattern that provides an interface for creating families of related or dependent objects without specifying their concrete classes. It allows the client code to create objects of different types that belong to the same family.

Here, related or dependent objects means a group of objects that are designed to be used together to achieve a common goal. It emphasizes the idea that certain objects should be created together as a cohesive group. The abstract factory provides an abstract class or an interface for creating these objects, and concrete factories implement this abstract class or interface to produce specific families of related or dependent objects.

Abstract Factory Components

The following are the components of the Abstract Factory design pattern:

1. Abstract Factory: This can be an abstract class or an interface that declares the methods for creating the objects of the related abstract products.

1. Concrete Factories: These are the classes that implement the Abstract Factory interface or abstract class and provide the implementation for creating the objects of abstract products.

1. Abstract Products: These are the abstract classes or interfaces that define the common behavior for the related or dependent products that the abstract factory can create.

1. Concrete Product: These are the classes that implement the Abstract Product interfaces or abstract classes and provide the implementation for abstract products. The concrete factories will create and return objects of these classes.

1. Client: This is a class that uses the Abstract Factory to create the objects of the products. It does not create objects of concrete products using the ‘new' keyword instead it uses abstract factory objects to get the objects of the concrete products.

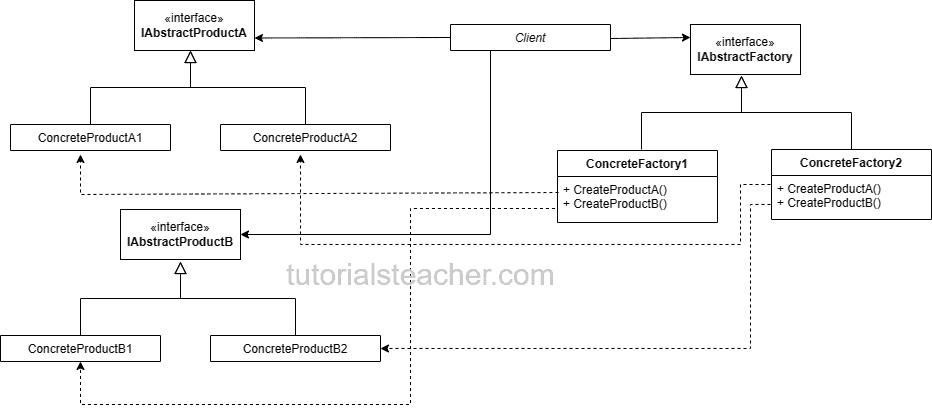

The following diagram shows the abstract factory components and relation between them.

Let's start with creating abstract product interfaces and concrete product classes. Remember that concrete products should be related or dependent classes to implement a common functionality.

// Abstract Product A
interface IAbstractProductA
{
	void ExecuteProductA();
}

// Concrete Product A 1
class ConcreteProductA1 : IAbstractProductA
{
	public void ExecuteProductA()
	{
		Console.WriteLine("Executing ConcreteProductA1");
	}
}

// Concrete Product A 2
class ConcreteProductA2 : IAbstractProductA
{
	public void ExecuteProductA()
	{
		Console.WriteLine("Executing ConcreteProductA2");
	}
}

// Abstract Product B
interface IAbstractProductB
{
	void ExecuteProductB(IAbstractProductA prodA);
}

// Concrete Product B 1
class ConcreteProductB1 : IAbstractProductB
{
	public void ExecuteProductB(IAbstractProductA prodA)
	{
		Console.WriteLine("Inside ConcreteProductB1");
		prodA.ExecuteProductA();
	}
}

// Concrete Product B 2
class ConcreteProductB2 : IAbstractProductB
{
	public void ExecuteProductB(IAbstractProductA prodA)
	{
		Console.WriteLine("Inside ConcreteProductB2");
        prodA.ExecuteProductA();
	}
}

In the above code, the abstract products IAbstractProductA and IAbstractProductB are interfaces that define the methods that the concrete products must implement. Note that IAbstractProductB contains a method that communicates with IAbstractProductA just to showcase they are dependent or related products.

The concrete products ConcreteProductA1, ConcreteProductA2, ConcreteProductB1, and ConcreteProductB2 implement the respective abstract product interfaces. They provide the specific implementations of the operations defined in the interfaces.

So, these are our related product implementations to achieve some functionality. Now, let's create an Abstract Factory and concrete factory that creates and returns objects of the above concrete products, as shown below.

// Abstract Factory
interface IAbstractFactory
{
	IAbstractProductA CreateProductA();
	IAbstractProductB CreateProductB();
}

// Concrete Factory 1
class ConcreteFactory1 : IAbstractFactory
{
	public IAbstractProductA CreateProductA()
	{
		return new ConcreteProductA1();
	}

	public IAbstractProductB CreateProductB()
	{
		return new ConcreteProductB1();
	}
}

// Concrete Factory 2
class ConcreteFactory2 : IAbstractFactory
{
	public IAbstractProductA CreateProductA()
	{
		return new ConcreteProductA2();
	}

	public IAbstractProductB CreateProductB()
	{
		return new ConcreteProductB2();
	}
}

In the above code, the IAbstractFactory interface represents an abstract factory, which defines the methods CreateProductA() and CreateProductB() to create instances of IAbstractProductA and IAbstractProductB, respectively. Note that you may take an Abstract Class instead of an interface depending on your requirements.

The concrete factories ConcreteFactory1 and ConcreteFactory2 implement the IAbstractFactory interface and override the methods to create two concrete products.

Now, let's see how the client class uses this abstract factory to get the objects of the concrete products.

// Client
class Client
{
	private IAbstractProductA _productA;
	private IAbstractProductB _productB;
	public Client(IAbstractFactory factory)
	{
		_productA = factory.CreateProductA();
		_productB = factory.CreateProductB();
	}

	public void Execute()
	{
		_productA.ExecuteProductA();
		_productB.ExecuteProductB(_productA);
	}
}

The Client class receives an instance of the abstract factory in its constructor. It then uses the factory to create instances of the abstract products (IAbstractProductA and IAbstractProductB). The client can execute operations on the created products.

public class Program
{
	public static void Main(string[] args)
	{
		Console.WriteLine("Using factory1");
		IAbstractFactory factory1 = new ConcreteFactory1();
		Client client1 = new Client(factory1);
		client1.Execute();

		Console.WriteLine("Using factory2");
		IAbstractFactory factory2 = new ConcreteFactory2();
		Client client2 = new Client(factory2);
		client2.Execute();
    }
}

The Main method demonstrates the usage of the abstract factory pattern by creating instances of different factories (ConcreteFactory1 and ConcreteFactory2) and passing them to the Client constructor. The client then uses these factories to create and execute the products.

Now, let's create a new example of DBConnectionFactory based on the abstract factory pattern.

Real-world example:

Let's consider a real-world example wherein you access multiple databases in your application. Assume that you need to connect to two databases SQL Server, and PostgreSQL databases to save or retrieve some data in your application. We can use the Abstract Factory design pattern to create the database factories and other components in this scenario.

using System;

//Abstract Product
interface IDBConnection
{
	void Connect();
}

//Concrete Product
class SQLServerDBConnection : IDBConnection
{
	public void Connect()
	{
		Console.WriteLine("Connected to SQL Server database...");
	}
}

//Concrete Product
class PostgreDBConnection : IDBConnection
{
	public void Connect()
	{
		Console.WriteLine("Connected to PostGre database.");
	}
}

//Abstract Product
interface IDBCommand
{
	void Execute(string query, IDBConnection con);
}

//Concrete Product
class SQLServerDBCommand : IDBCommand
{
	public void Execute(string query, IDBConnection con)
	{
		con.Connect();
		Console.WriteLine("Executing SQL Server query: " + query);
	}
}

//Concrete Product
class PostgreDBCommand : IDBCommand
{
	public void Execute(string query, IDBConnection con)
	{
		con.Connect();
		Console.WriteLine("Executing PostGreSQL Server query: " + query);
	}
}

//Abstract Factory
interface IDBFactory
{
	IDBConnection CreateConnection();
	IDBCommand CreateCommand();
}

//Concrete Factory for SQL Server
class SQLServerFactory : IDBFactory
{
	public IDBConnection CreateConnection()
	{
		return new SQLServerDBConnection();
	}

	public IDBCommand CreateCommand()
	{
		return new SQLServerDBCommand();
	}
}

// Concrete Factory for PostgreSQL
class PostGreSQLFactory : IDBFactory
{
	public IDBConnection CreateConnection()
	{
		return new PostgreDBConnection();
	}

	public IDBCommand CreateCommand()
	{
		return new PostgreDBCommand();
	}
}

//Client
class DBQueryClient
{
	private IDBConnection _connection;
	private IDBCommand _command;

	public DBQueryClient(IDBFactory factory)
	{
		_connection = factory.CreateConnection();
		_command = factory.CreateCommand();
	}

	public void ExecuteQuery(string query)
	{
		_command.Execute(query, _connection);
	}
}

public class Program
{
	public static void Main()
	{
		Console.WriteLine("Using SQL Server Factory");
		IDBFactory sqlServerFactory = new SQLServerFactory();
		DBQueryClient sqlServerClient = new DBQueryClient(sqlServerFactory);
		sqlServerClient.ExecuteQuery("SELECT * FROM Customers");

		Console.WriteLine("
Using PostGre Factory");
		IDBFactory postgreFactory = new PostGreSQLFactory();
		DBQueryClient postgreClient = new DBQueryClient(postgreFactory);
		postgreClient.ExecuteQuery("SELECT * FROM Customers");
	}
}

Using SQL Server Factory Connected to SQL Server database... Executing SQL Server query: SELECT * FROM Customers Using PostGre Factory Connected to PostGre database. Executing PostGreSQL Server query: SELECT * FROM Customers

In the above example, we have defined two abstract product interfaces: IDBConnection and IDBCommand. The IDBConnection defines methods to connect with the database and IDBCommand defines methods to execute queries to the database. These are dependent abstract products because the IDBCommand would need an IDBConnection object to execute the query.

Next, the SQLServerDBConnection and PostgreDBConnection are concrete product classes that implement the IDBConnection interface. Both classes implement the Connect method to establish a connection to the corresponding database.

Similarly, the SQLServerDBCommand and PostgreDBCommand are concrete product classes that implement the IDBCommand interface. These classes implement the Execute method to execute queries on the respective databases.

An abstract factory interface named IDBFactory. This interface defines the factory methods responsible for creating instances of IDBConnection and IDBCommand.

The SQLServerFactory and PostGreSQLFactory are concrete factories that implement the CreateConnection and CreateCommand methods to create instances of the corresponding concrete product classes.

Now, the DBQueryClient is the client class that queries the database depending upon the factory class that is passed. This class accepts an instance of the abstract factory in its constructor and uses it to create concrete product instances. The DBQueryClient then utilizes the created IDBConnection and IDBCommand objects to execute queries on the database.

Finally, in the Main method, the code demonstrates the usage of the abstract factory and created objects. It creates a client using the SQLServerFactory, executes a query using the created objects, and then repeats the process with the PostGreSQLFactory.

Through this implementation, the Abstract Factory pattern provides an interface for creating families of related objects without specifying their concrete classes, allowing the client to use any of the available families interchangeably.

Thus, the Abstract Factory design pattern provides a way to create families of related or dependent objects without specifying their concrete classes. It promotes loose coupling and allows for easy extensibility and flexibility in creating objects. By using the Abstract Factory pattern, you can easily switch between different families of objects in your application without affecting the client code.
